We Offer

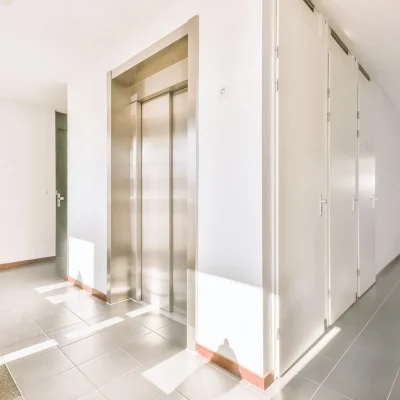

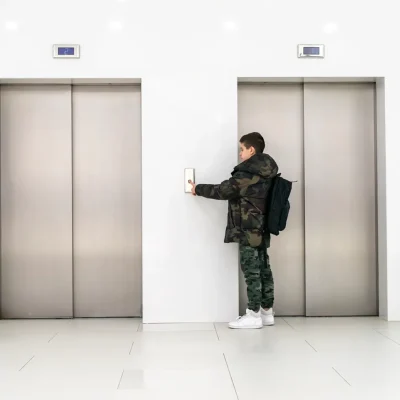

Passenger Elevator

Passenger Capacity: 4-20
What is passenger elevator?
A passenger lift, also known as a passenger elevator, is designed to transport people between different floors of a building efficiently and comfortably.
Key Features:
  • Smooth Operation: Uses advanced traction or hydraulic systems for smooth, jerk-free travel.
  • Safety Mechanisms: Equipped with features like emergency brakes, automatic rescue devices, and overload sensors.
  • Accessibility: Often includes features like wide doors, handrails, and Braille buttons to assist people with disabilities.
  • Design: Can be customized with various interior designs, lighting, and materials to match the building’s aesthetics.
Advantages:
  • Convenience: Provides easy and quick access to different floors, saving time and effort.
  • Safety: Built-in safety features ensure passengers are protected during travel.
  • Space Efficiency: Modern designs can fit in compact spaces, maximizing the usable area within a building.
  • Energy Efficiency: Advanced models are designed to be energy-efficient, reducing the overall energy consumption of the building.
  • Enhanced Building Value: Adds to the functionality and appeal of a building, making it more attractive to occupants and visitors.
Passenger lifts are essential in multi-story buildings, providing an efficient means of vertical transport.

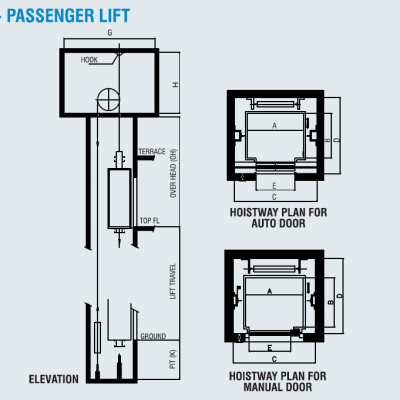

Passenger lift with Auto Doors
Load Car Inside Lift Well WIDTH Lift Well Up to 1.5 m/sec
PER. W.T. WIDTH DEPTH WIDTH DEPTH WIDTH DEPTH HEIGHT
IN KG. A B C D E F G H K OH
6 408 1100 1000 1900 1650 800 3000 3500 2500 1600 4800
8 544 1300 1100 1900 1900 800 3200 3500 2500 1600 4800
10 680 1350 1300 1900 2000 800 3500 4000 2500 1600 4800
13 884 1650 1300 2250 2000 900 4000 4200 2500 1600 4800
16 1088 2000 1300 2500 2000 1000 4500 4800 2500 1600 4800
20 1360 2000 1550 2500 2300 1000 5000 5000 2500 1600 4800
Passenger lift with Manually Operated Doors
Load Car Inside Lift Well WIDTH Lift Well Up to 1.5 m/sec
PER. W.T. WIDTH DEPTH WIDTH DEPTH WIDTH DEPTH HEIGHT
IN KG. A B C D E F G H K OH
4 272 1100 700 1600 1250 700 3000 3000 2500 1524 4250
5 340 1100 850 1600 1300 750 3000 3200 2500 1524 4250
6 408 1100 1000 1670 1370 750 3000 3500 2500 1524 4250
8 544 1300 1100 1800 1500 800 3000 3500 2500 1524 4250
10 680 1350 1300 1850 1800 900 3000 3500 2500 1524 4250
13 884 1650 1300 2220 1800 1000 4000 4200 2500 1600 4250
16 1088 2000 1300 2500 1800 1000 4500 4800 2500 1600 4250
20 1360 2000 1550 2500 2050 1000 5000 5000 2500 1600 4250
We Offer

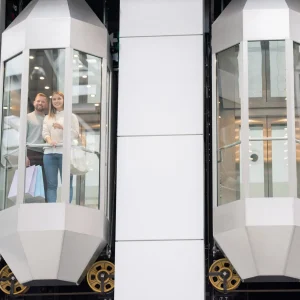

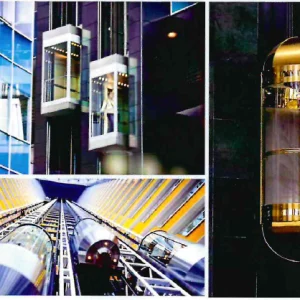

Panoramic/Capsule Elevator

Passenger Capacity: 8-20
What is capsule elevator?
A Capsule Elevator is essentially installed to enhance a building’s elevation, offering passengers a panoramic view of the surroundings. It typically comes in 5 and 3 glass panels. Capsule elevators are usually preferred in:
  • Shopping malls (for displaying items)
  • 5-star hotels (to provide lobby views)
  • High-rise residential buildings
Key Features:
  • Made from S.S. / M.S. with a vision panel.
  • Color-powder coated for an elegant look.
  • Lightweight with variable speed.
  • Controller proof to voltage (PLC or solid state) with a fully collective-selective system.
  • AC VVVF drive for jerk-free operation and variable speed.
  • Overload indication and auto door announcing system.
  • Inverter facility for single base operation during power failure.
  • Push buttons are luminous, attractive, and durable.
  • Floor position indication at both the floors and in the cabin.

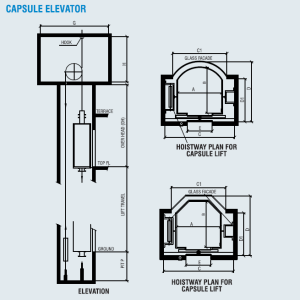

Capsule Elevator With Auto Doors
LOAD CAR INSIDE LIFT WELL ENT. MACHINE ROOM UP TO 0.7 M/SEC
PER. W.T. WIDTH DEPTH WIDTH DEPTH WIDTH DEPTH HEIGHT
IN KG A B C C1 D D1 E F G H P OH
6 408 1000 1225 1900 1350 1870 1400 700 3000 3500 2500 1500 4800
8 544 1200 1360 2150 1600 2120 1600 800 3200 3500 2500 1600 4800
10 680 1400 1460 2250 1800 2220 1600 1000 3500 4000 2500 1600 4800
15 1020 1400 1850 2250 1800 2610 1600 1000 3500 4000 2500 1600 4800
We Offer

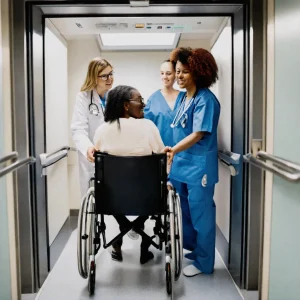

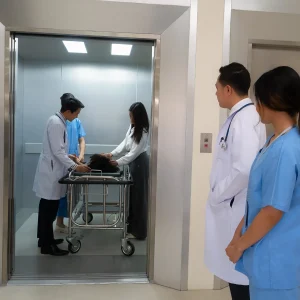

Hospital Elevator

What is hospital elevator?
A hospital lift, also known as a hospital elevator, is designed to transport patients, medical staff, and equipment efficiently within a healthcare facility.
Key Features:
  • Large Cabin Space: Accommodates stretchers, wheelchairs, and medical equipment.
  • Safety Mechanisms: Equipped with features like emergency brakes, automatic rescue devices, and overload sensors.
  • Smooth Operation: Ensures comfortable and jerk-free travel for patients.
  • Accessibility: Designed for easy access with features like wide doors and handrails.
  • Energy Efficiency: Uses energy-efficient systems to reduce power consumption
Advantages:
  • Efficient Patient Transport: Quick and smooth movement of patients between floors, enhancing care delivery.
  • Enhanced Workflow: Streamlines the movement of medical staff and equipment, improving overall efficiency.
  • Safety: Prioritizes patient and staff safety with advanced safety features.
  • Comfort: Provides a comfortable and accessible means of transport for patients with mobility challenges.
  • Space-Saving: Compact design that maximizes usable space within the hospital.
Hospital lifts play a crucial role in ensuring the smooth operation of healthcare facilities, making them essential for efficient and safe patient care.
We Offer

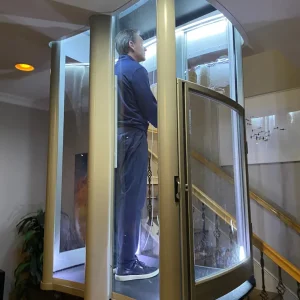

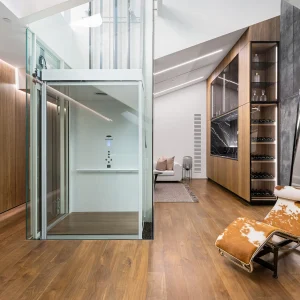

Home Elevator

What is home elevator?
A home lift, also known as a residential elevator, is a compact elevator designed to be installed in private homes, enabling easy movement between different floors.
Key Features:
  • Compact Design: Tailored to fit in limited spaces within a home, requiring minimal construction work.
  • Quiet Operation: Engineered to operate smoothly and quietly, ensuring minimal disruption to the household.
  • Safety Features: Includes safety mechanisms such as emergency brakes, battery backup, and obstruction sensors.
  • Customizable Interiors: Offers various design options to match the home’s decor, including different materials, finishes, and lighting.
  • Energy Efficiency: Utilizes energy-efficient motors and systems to minimize electricity consumption.
Advantages:
  • Improved Mobility: Provides easy access to all floors, especially beneficial for elderly or disabled individuals.
  • Enhanced Home Value: Adds to the property’s value and appeal, making it a more attractive investment.
  • Convenience: Makes daily tasks like moving groceries or laundry between floors much easier.
  • Safety: Reduces the risk of falls and injuries associated with stairs, providing a safer environment.
  • Customization: Allows for a high level of customization to match the homeowner’s preferences and needs.
Home lifts are a great way to improve the accessibility and functionality of a multi-story home, combining convenience with style and safety.

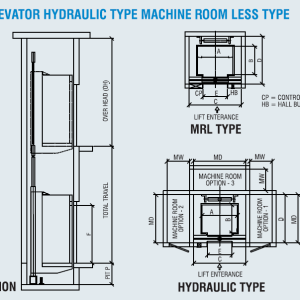

Hydraulic Home Elevator With Auto Doors
LOAD CAR INSIDE LIFT SHAFT INSIDE DOOR OPENING OVERHEAD PIT DOOR TYPE SPEED MACHINE ROOM
PER. W.T. WIDTH DEPTH WIDTH DEPTH WIDTH HEIGHT HEIGHT HEIGHT
IN KG A B C D E F H P MTR./SEC. MW MD HT
3 204 750 750 1400 1450 700 2000 3200 550 SIDE OPENING 0.25~0.65 " " "
3 204 750 750 1550 1450 700 2000 3200 550 CENTER OPENING " " "
4 272 900 850 1400 1550 700 2000 3200 550 SIDE OPENING " " "
4 272 900 850 1550 1550 700 2000 3200 550 CENTER OPENING " " "
5 340 1000 950 1500 1650 700 2000 3200 550 SIDE OPENING 1500 1500 1500
5 340 1000 950 1550 1650 700 2000 3200 550 CENTER OPENING " " "
6 408 1000 1100 1550 1800 700 2000 3200 550 SIDE OPENING " " "
6 408 1000 1100 1550 1800 700 2000 3200 550 CENTER OPENING " " "
6 408 1000 1100 1700 1800 800 2000 3200 550 CENTER OPENING " " "
We Offer

MRL Elevator

Introducing a revolutionary concept in the field of elevators to give you absolute freedom in designing—MRL (Machine Room-Less) Elevators. Our exclusive MRL elevators bring aesthetic enhancements to your structure.
Advantages:
  • Less Space: Compact design with no machine room.
  • Less Energy: Energy-efficient operation.
  • More Flexibility: Greater freedom in building designs.
  • Latest Technology: Cutting-edge elevator technology.
  • Smoothest Travel: Exceptional ride quality.
  • Electricity Savings: Substantial reduction in electricity costs.
  • Cost Savings: Reduced construction costs.
  • Enhanced Safety: Increased safety features.
Specifications:
  • Machines: Montenary, Sharp (Gearless and Geared)
  • Controller Drives: Arkel, Monarch
  • Guide Rails: Savera, Marrazi
  • Main Rope and Safety Rope: Usha Martin
  • Auto Door Mechanism: Wittur, Fermator
MRL Passenger Elevator with Auto Doors
LOAD CAR INSIDE SIDE OPENING LIFT WELL FOR CENTER OPENING LIFT WELL FOR SIDE OPENING ENT. 1.0 M/SEC. TO 1.5 M/SEC
PER. W.T. IN KG A B C D C D E P OH
6 408 900 1200 1750 1600 1700 1700 700 1600 4800
8 544 1000 1450 1950 1850 1800 1950 800 1600 4800
10 680 1100 1600 2150 2000 1900 2100 800 1600 4800
13 884 1200 1750 2450 2150 2000 2250 900 1600 4800
16 1088 1300 2000 2800 2400 2100 2500 900 1600 4800
20 1360 1500 2050 2800 2450 2300 2550 1000 1600 4800
We Offer

Hydraulic Elevator

Passenger Capacity: 6-12
What is Hydraulic elevator?
A hydraulic elevator is a type of lift that uses hydraulic power to raise and lower the elevator car. Unlike traction elevators, which use ropes and counterweights, hydraulic elevators rely on a fluid-driven piston mounted inside a cylinder.
They’re particularly useful in buildings with low to medium height and are known for their smooth and quiet operation.
Advantages:
  • Operation: When the elevator is called to ascend, hydraulic fluid is pumped into the cylinder, pushing the piston up and lifting the elevator car. To descend, the fluid is released in a controlled manner, and the car lowers.
  • Machine Room Position: The hydraulic power unit (the "machine room") can be placed within 10 meters of the elevator shaft, providing flexibility in building design.
  • Capacity: These elevators can carry heavy loads, often up to 2 tons, making them ideal for large cars and heavy-duty applications.
  • Energy Efficiency: When descending, they use gravity rather than consuming energy, making them more efficient.
  • Space Efficiency: No counterweight is needed, which increases the space available within the elevator shaft and reduces construction costs.
We Offer

Goods Elevator

Load Capacity: 500-3000 kg
What is Goods elevator?
A goods elevator is designed specifically for transporting heavy loads, materials, and equipment rather than passengers. These elevators are commonly used in industrial settings, warehouses, factories, and sometimes in commercial buildings to move goods between different floors.
We have successfully implemented our technical expertise to install heavy goods elevators as per customer requirements. We have completed prestigious customized jobs in record time, exceeding safety standards and providing an all-round solution thanks to our in-house design team.
Key Features:
  • Auto Rescue Device: In the event of a power cut, the elevator will continue to the nearest floor and open the doors to let passengers out safely.
  • Infrared Light Curtain: Full-height infrared curtain with multiple cross-crossing light beams detects the smallest obstruction in the door path and stops the doors from closing.
  • Overload Sensor with Audio-Visual Indication: On overloading, the lift provides an audio-visual indication and keeps the doors open until the excess load is removed.
  • Car Emergency Light: Always illuminated in normal conditions, it switches automatically to battery backup in case of power failure.
  • Emergency Alarm & Push to Talk: In case of any emergency or power failure, help can be obtained by alarming or communicating at the lobby through this battery-operated and self-charging system.
  • Safety in Case of Over Travel: Three-phase electric power is disconnected from the control panel and motor if the elevator moves beyond the limit of the top and bottom terminal floors, causing the brake to apply immediately and bringing the elevator to a halt.
  • Safety in Case of Rope Breakage: In the event of rope breakage, if the elevator speed exceeds the rated speed in the downward direction due to gravitational acceleration, the overspeed governor activates the clutch mechanism, switching off main controls and jamming the elevator car safely on guide rails.
  • Car Fan Automatic Sleep: The car fan automatically stops when there are no registered floor calls, saving power and enhancing its lifespan.
  • Voice Annunciator with Music: This system provides detailed information to passengers related to the next floor, direction of movement, door opening/closing, scheduled operations, and other information depending on the building needs. It features natural electronic voice synthesizers.
We Offer

Dumbwaiter Elevator

What is Dumbwaiter elevator?
A dumbwaiter lift is a small freight elevator designed to transport goods, food, laundry, or other small items between floors.
Key Features:
  • Compact Size: Fits into tight spaces, making it ideal for residential homes, restaurants, and hospitals.
  • Load Capacity: Typically designed to carry loads of 50 to 250 kg.
  • Durable Construction: Built with sturdy materials to handle frequent use.
  • Safety Mechanisms: Includes safety features like interlocks to prevent the doors from opening when the lift is in motion.
  • Ease of Use: Simple control panels for easy operation.
  • Customizable Design: Can be customized to match the interior decor of the building.
Advantages:
  • Efficiency: Speeds up the transportation of goods, reducing the time and effort needed for manual carrying.
  • Space-Saving: Takes up minimal space, making it a convenient solution for buildings with limited room.
  • Improved Workflow: Enhances the efficiency of operations in settings like restaurants and hotels by quickly moving items between floors.
  • Safety: Reduces the risk of injury associated with manual lifting and carrying of heavy items.
  • Cost-Effective: Economical to install and maintain compared to larger elevators.
Dumbwaiter lifts are incredibly useful for improving efficiency and safety in various settings, making them a practical addition to many types of buildings.
We Offer

Car Lift

TYPE DOOR CAR INSIDE LIFT WELL ENT. OVERHEAD SPEED
WIDTH DEPTH WIDTH DEPTH HEIGHT
A B C D E OH MTR./SEC
FOR A, B, C SEGMENT
(SMALL CARS)		 AUTO DOOR 2400 5250 3300 6000 2200 4200-5200 0.3-1.5
FOR D SEGMENT
(BIG CARS)		 2700 5570 3600 6000 2400 4200-5200 0.3-1.5
